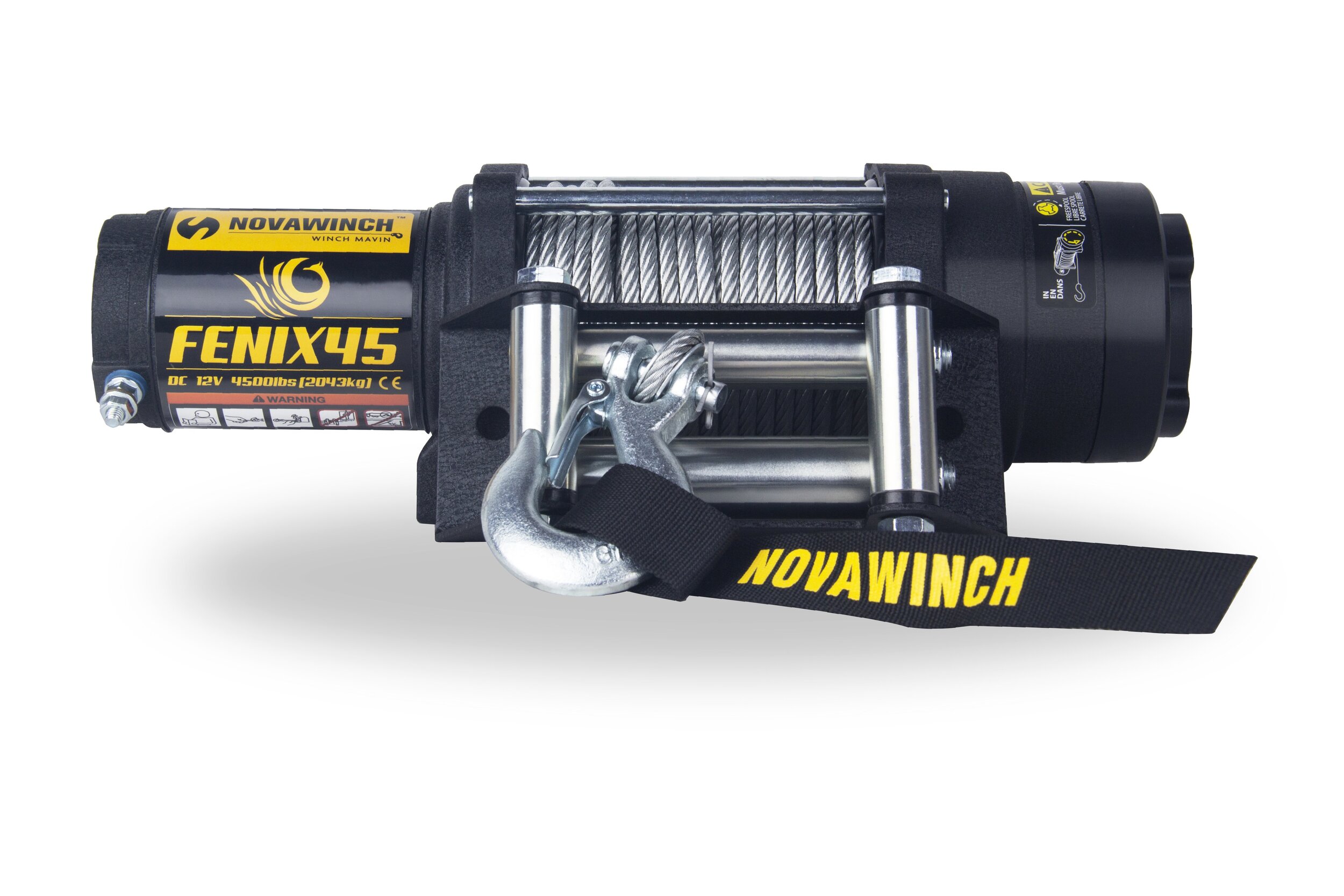

FĒNIX 4500 Wire Cable
From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price.
Best in Class Features:
Better Motors. With fatter windings, the FENIX winch can provide more power to the drum. Roller bearings (instead of competitors bushings) provide a smoother experience.
Wider, cut-steel gears spread loads leading to better engagement and longer service life.
All the parts you need. From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.
From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price.
Best in Class Features:
Better Motors. With fatter windings, the FENIX winch can provide more power to the drum. Roller bearings (instead of competitors bushings) provide a smoother experience.
Wider, cut-steel gears spread loads leading to better engagement and longer service life.
All the parts you need. From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.
From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price.
Best in Class Features:
Better Motors. With fatter windings, the FENIX winch can provide more power to the drum. Roller bearings (instead of competitors bushings) provide a smoother experience.
Wider, cut-steel gears spread loads leading to better engagement and longer service life.
All the parts you need. From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.
Specifications
| Rated Line Pull | 4,500 lbs (2,041 kgs) |
| Motor(Series wound): | Sealed 1.6 HP Permanent Magnet |
| Seal Rating | IP68 |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 191:1 |
| Clutch | Ergonomic 360° Control |
| Braking Action | Automatic, 100% Load Holding |
| Fairlead | 4-Way Roller |
| Wire Rope | 1/4″×55′(6.5mm×16.76m) |
| Remote | -10' Rugged Composite Remote -Handlebar Thumb Rocker Available DUO Wireless |
| Dimensions | 15.1" L x 4.5" D x 4.8" (383mm L x 114mm D x 122mm H) |
| Mounting Bolt Pattern | 3.0" x 6.66" (76mm x 169mm) |
| Weight | 22lbs (9.98kgs) |
Performance
| Line Pull | No Load | Full Load |
| Line Speed | 15 FPM (4.6MPM) | 5.5 FPM (1.7MPM) |
| Motor Current | 21 Amps | 178 Amps |

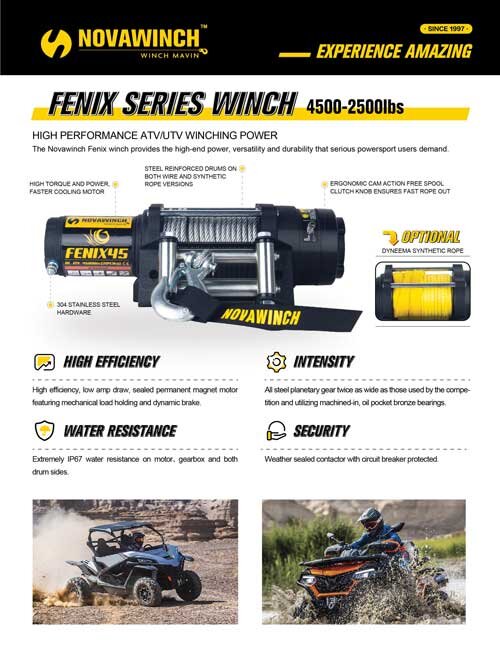

Downloadable Technical Sheet PDF
