NOVAWINCH T-Series 8,000 off-road winch
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability.
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability.
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability.
Features:
Classic design meets:
Tested to 50% overload.
Safety standards: SAE J706 and is CE marked.
Chrome-plated controls.
High-temperature, sealed contactor featuring silver contact pads for excellent conductivity and longevity.
Specifications
| Rated Line Pull | 8000lbs(3629kgs)single line |
| Motor(Series wound): | DC 12V: 5.6hp/4.2kW |

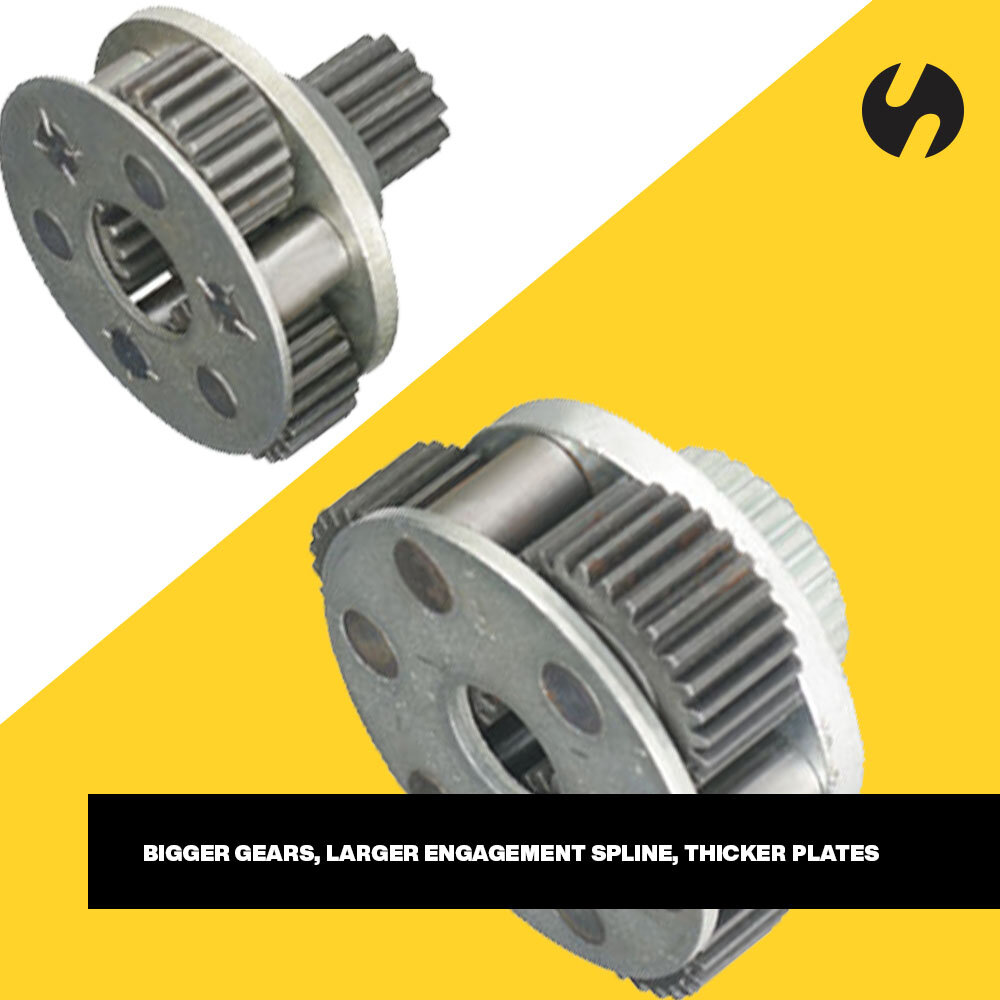

| Gear Box | 3-Stage Planetary |
| Gear Ratio | 196:1 |
| Clutch | Pull and Turn |
| Braking Action | Mechanical, Automatic, 100% Load Holding |
| Fairlead | 4 Way Roller Fairlead |
| Wire Rope | 5/16″×95′(8.1mm×29m) |
| Remote | 12' Rubber Toggle Switch |
| Dimensions | 22.36″×6.2″×10.3″(568mm×158mm×260mm) |
| Mounting Bolt Pattern | 10″×4.5″(254mm×114.3mm) |
| Weight | 91.6lbs(41.6kgs) |
Performance
| Line pull lbs(kgs) | No Load | Max Load |
| Line speed FPM(MPM) | 19.4(5.9) | 5.6(1.7) |
| Motor current Amps | 80 | 360 |
